Otis Instruments OI-6400
Four-Channel Fixed Gas Detection System
with Optional Remote Sensors



home » otis instruments fixed point detectors » OI-6400 » Otis Instruments 4-Channel Fixed Gas Detection System



Otis Instruments OI-6400 Four-Channel Non-Explosion-Proof multi-point monitor

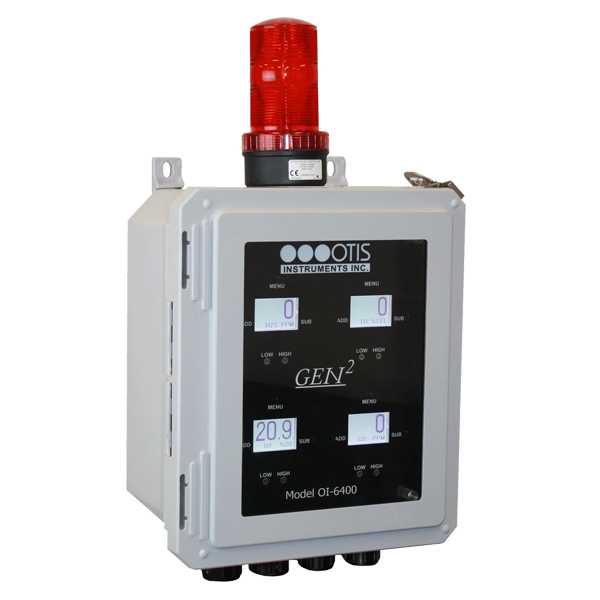

OI-6400 with Single Red Strobe
Integrally Mounted Sensors

Otis Instruments OI-6400 4-channel fixed gas non explosion-proof detector provides multi-point protection in less than 5 minutes – just plug it in, check the calibration and be protected! The OI-6400 can be used as a stand alone self contained monitor or used with remote sensing head(s) or be part of a transmitter in a larger system.

Available with Electro-Chemical (EC), Infrared (IR) or PID sensor elements. Sensors may be integrally mounted to the controller housing, or linked by up to 100 feet of wire to the system controller.

OI-6400 systems are designed to provide continuous monitoring for a variety of common atmospheric hazards including oxygen deficiency and/or enrichment, combustible gases and vapors, and specific toxic contaminants such as:

Ammonia (NH3) Hydrogen Chloride (HCL)
Carbon monoxide (CO) Hydrogen Cyanide (HCN)
Carbon Dioxide (CO2) Hydrogen Sulfide (H2S)
Chlorine (Cl2) Nitrogen Dioxide (NO2)
Chlorine Dioxide (ClO2) Oxygen (O2)
Combustible gas (IR-LEL) Phosphine (PH3)
Hydrogen (H2) Sulfur dioxide (SO2)
PID sensors for VOC detection in a number of ranges

The the OI-6000K offers the flexibility to choose a single color strobe ((red, amber or blue) or LED Tri-Light alarm. Also includes an integrated 102 db dual-tone audio alarm,and a real time LCD readout…..all in a tough NEMA 4X housing.


OI-6400 4-Channel Wired System Technical Specifications

Case

Stahlin fiberglass with clear window, wall mount, non explosion-proof.

Built-In Alarms Red, Amber, or Blue strobe or LED Tri-Light (green for pilot light, amber for low alarm and red for high alarm)
Sensor Types Electro-chemical, PID or Infrared
Display Four 102 x 64 resolution Graphical LCD screens with LED back-lights
Customizable Settings 2 individually-configurable alarm LED set-points (per control board)
Temperature Range (-4°F to +130°F) (-20°C to +54°C)
Interface Three push buttons (MENU, ADD, SUB) per control board
Dimensions Controller: 17-5/16" H x 10.1/16" W x 6 5/16" D
Weight 11lbs (Varies by options selected)
Power Voltage AC power supply input voltage 110/240 Volts AC
DC Current Draw 2 Amps max @ 24 VDC

Wired Analog Output

4-20 mA (3-Wire) & fault terminal (per control board)
Digital Output RS-485 Modbus (per control board)
Temperature Range (-76°F to +274°F) (-60°C to +134°C)
Wiring: Comes standard with AC power cord
Remote Sensor Kits: Remote sensors with cable 10, 25, 50, 75, or 100 feet from the enclosure
Warranty Hardware: One year (Limited)
Sensor: varies with sensor type


Each OI-6400 system includes the specified sensors, controllers with standard alarms, relays and electronics installed in a non explosion-proof fiberglass housing.

Note: Cable, conduit, wire and other components necessary to connect remotely located sensors with the instrument controller are not included. Kits ordered separately.

Otis OI-6400 Data Sheet


Green_Back-To-Top_Icon


WARNING! Otis Instruments equipment should only be used in conjunction with the manufacturer's instructions.
Failure to follow such instructions could result in serious injury or fatalities.
