Otis Instruments OI-6000 Non-Explosion Proof Wire-Powered Sensor Assembly with Optional Relays and Radio

Otis Instruments OI-6000
Cube Series
Non-Explosion Proof Wire-Powered
Single Gas Sensor Assembly
with Display
Optional Relays & Radio

Fixed Point Gas Detection Systems



home otis instruments fixed point detectors OI-6000 NonEX OI-6000 Cube Series Non-EX Wired Gas Sensor Assembly With Display

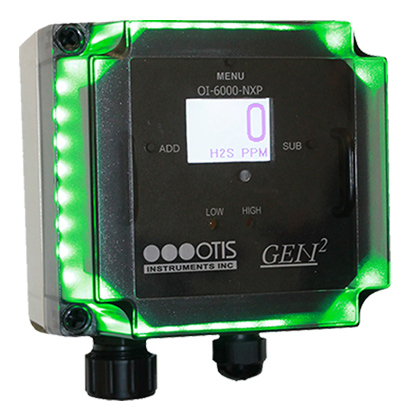

OI-6000 Cube Series Wire-Powered Sensor Assembly with Radio and Relay

Non-Explosion Proof Model
Cube Series

Wire-Powered Sensor Assembly
Optional Radio & Relays

The OI-6000 Cube Series, a non-explosion proof ambient air single-point remote gas sensor assembly with wired power (3-wire), 12-25 VDC voltage, sensor assembly. Uses electro-chemical, PID, or Infrared sensor elements to detect a variety of gases including O2, H2S, CO, LEL, CO2, Cl2, SO2, NH3, NO2, PH3 and other toxic gases.

The OI-6000 comes standard with a graphical LCD screen, three-button interface, non-intrusive magnetic switches. Designed to reject EMI and other forms of interference in order to avoid false gas readings.

   Non-explosion proof enclosure
   Quickly setup and install a remote sensor
   Non-intrusive calibration with MENU, ADD and SUB
   Two front panel LED indicators (Amber & Red)
   Digital RS-485 Modbus output
   Choice of sensor elements available for gas detection
   Strobe alarms & horns can be managed by the controller
   Rapid response and clearing time

OI-6000 Cube Series Non-Explosion Proof Wired Sensor Assembly
Optional Radio and/or Relays

Technical Specifications

Enclosure Non-Explosion Proof | Aluminum Device Enclosure with Plastic Lid
Size & Weight

7.6" L x 5.1" W x 5.4" H (15.76" L Maximum w/ Antenna)
5 Lbs

Display 102x64 Resolution Graphical LCD Screen
Transflective (Sunlight Readable) with white LED Backlight
Interface Three push buttons: MENU, ADD, SUB
3 Magnetic Non-Intrusive Switches for Calibration (MENU, ADD and SUB)
Customizable Settings
Optional Relays
2 Individually-Configurable Alarm LED Set-Points
Optional 2 Dry-Contact Relays with Replaceable 4 Amp Fuses
Sensor Options Electrochemical, Infrared, Photo Ionization Detector (PID):
H2S, CO, O2, H2S2K, HCL, HCN, NH3, NH3300, NH3A, NO2, SO2, CO2, LEL, CL2, PH3, VOC10, VOC20, VOC50, VOC1K, VOC2K, CH2O
Power Voltage | Draw Wired Power (3-Wire) 12 to 35 VDC | 2 Watts Maximum
Signal Output Analog: 4-20mA (3-wire)
Digital: RS-485 Modbus digital output
Optional WireFree Radio GEN II 900 MHz Radio or
GEN II 2.4 GHz Radio (for overseas use)
Protection

Power Electromagnetic Interference (EMI) Filter
4-20 mA Surge Suppression
RS-485 Surge Suppression

Customizable Settings Individually-Configurable Alarm LED Set-Points
Tamb - Temperature Range -20C to +54C / -40F to 130F
Humidity Range 0% to 98% Relative Humidity, Noncondensing
Warranty Hardware: One year (limited)
Sensor: varies with sensor type
Part Number Formula OI-6000-[Sensor Type]-[Gas]-[Radio Option]-[Relay /Light Option]-C

Green_Back-To-Top_Icon


WARNING! Otis Instruments equipment should only be used in conjunction with the manufacturer's instructions.
Failure to follow such instructions could result in serious injury or fatalities.
