Bios Defender 510 & 520 Primary Flow Calibrator
Using DryCal® Technology

MesaLabs Bios International is now a division of MesaLabs
MesaLabs Bios Defender
510 & 520 Primary Flow Meter
Primary Air Flow Calibrators with DryCal® Technology

      Home MesaLabs Bios Defender 510 & 520 Primary Air Flow Flow Calibrators

Order Form
Proven DryCal TechnologyBios Defender 510 & 520 with DryCal Technology

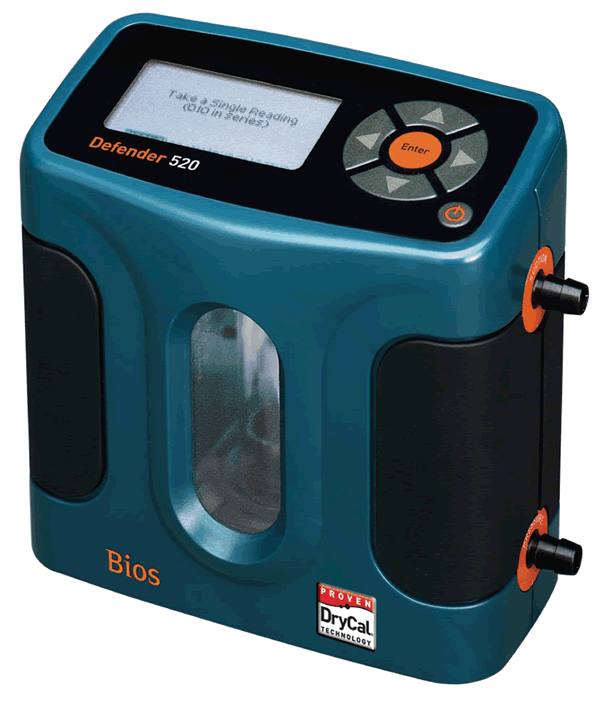

Larger picture of Defender


MesaLabs
Bios Defender 510 and Defender 520 are the next generation of the patented DryCal® near-frictionless piston technology true primary air flow calibrators for industrial hygiene and environmental health and safety applications. Easily calibrate personnel and area sampling pumps and rotometers used in industrial, commercial, IAQ, lead, asbestos,mold and respirable dust monitoring.

Everything you trusted about Bios DryCal® technology in the DC-Lite and DC-2 digital flowmeters is available in the Defender 510, 520 & 530+ calibrators that make it easier than ever to calibrate air sampling pumps, rotometers or other flow instruments. Depending on the model, measure volumetric flow or standarized flow, which correct for temperature and pressure to calibrate devices that read in mass flow.

Building on the patented DryCal technology, the Defender 500 series calibrators incorporate features which make them immune to flow source pulsation without the need for in-line dampers.

Like all MesaLabs calibrators, the Defender 500 series calibrators are easy to use.  Turn it on, connect it to a sampling pump or instrument being calibrated and start taking readings. It's as simple as that. Calibrations are completed quickly with no messy soap bubble solutions to wait on or clean up after.

The Defender 510 and 520 can take hands-free continuous readings while quickly and accurately setting the flow rate on air sampling pumps or other instruments. The Defender calibrators connect to any PC and pre- and post-calibration data can be downloaded using the DryCal® Pro software.

The MesaLabs Bios Defender Model Overview

Defender 500 Series Model Flexibility Depending on Application
  •  Defenders available in three different flow range models depending on application
    1. Defender 510: volumetric flow calibration of personnel or area monitoring air samplers
    2. Defender 520: enhanced volumetric flow calibration with ability to record ambient temperature and pressure conditions for audit trails
    3. Defender 530+: calibrate using volumetric flow readings or standarized readings which correct for temperature and pressure, and calibrate devices that read in mass flow
  •  Choose between flow units
    • – Volumetric: mL/min, L/min, cc/min, or cf/min
    •   530+ Only: Standardized: smL/min, L/min, cc/min, scf/min
  •  Include up to one hundred readings in a group average
  •  Take individual readings, continuous hands-free readings, or set to read in time intervals anywhere from one minute to sixty minutes between readings
Defender 510 and 520 Accuracy
  • Accuracy of 1% percent for volumetric flow readings
  • MesaLabs is a fully accredited ISO-17025 facility with a 0.08% Scope of Accreditation for gas flow by NVLAP of NIST.
  • Integrated temperature sensors and pressure transducers placed directly in the flow stream in the Defender 520.
Ease of Use
  •  Housed in a molded case with rubber handgrips for a better feel
  •  Large illuminated flow cell viewing window
  •  Navigation menu and a large, illuminated graphical display with zoom feature
  •  Rated for extreme cold operation, down to -20 ºC
  •  RoHS (Restriction of Hazardous Substances) compliant for Europe
  •  Automatic Shutoff
Specifications
Proven DryCal Technology Defender 510/520 Specifications


MesaLabs Bios Defender 510 - 520 Specifications


Size 5.5"H x 6"W x 3"D
140 mm x 150 mm x 75 mm
Weight 29 oz. / 820 g
Flow Ranges
DryCal Defender Low (L) Flow: 5 to 500 mL/min
DryCal  Defender Medium (M) Flow: 50 - 5,000 mL/min
DryCal Defender High (H) Flow: 300 - 30,000 ml/min
Accuracy
Volumetric (Defender 510 or 520) ±1.0%
User-Selectable Measurement Units
Volumetric Flow mL/min, L/min, cc/min, cf/min
Pressure (Defender 520 only) mmHg, PSI, kPa
Temperature (Defender 520 only) ºC, ºF
Approximate Time per Reading 1-15 seconds
Gas Compatibility Use with non-corrosive, non-condensing, non-combustible gases, less than 70% humidity
Flow Modes Suction or Pressure
Measurement Cell Style Integrated
Temperature & Pressure Sensors In the flow stream
Press: 3.5 mmHg (typical), 7.0 mm (max)
Temp: 0.8 °C (typical) 1.3 °C (max)
Reading Styles Single (manual), Continuous or Burst, with averaging function user-selectable from 1 to 100 measurements
AC Adapter/Charger 12 DC, >250 ma, 2.5 mm, center positive
Battery System 6V rechargeable, sealed lead-acid, 6-8 hours typical operation
Battery Operational Time  (5 cycles/min), 3 hours backlight on, 8 hours backlight off
Pressure & Suction Fittings ¼” ID Hose Barb
Warranty Instrument: 1 year, Battery: 6 months
Storage Temperature 0-70 °C
Ambient Humidity 0-70% - non-condensing
Operating Pressure  (Absolute) 15 PSI
Display Backlit graphical LCD
Data Port
Serial RS-232 (for use with DryCal Pro software)
Data Cable 1 meter (Defender Data Port to PC Serial Port)
Protective Case Pelican case available
Laboratory Accreditation Instruments are manufactured and calibrated by MesaLabs accredited to the ISO 17025, ANSI Z540, and NIST Handbook 150 standards. Traceability to the International System of Units (SI) and NIST is verified by accreditation to the ISO/IEC 17025.
Instrument Certification RoHS and CE Compliant

Software

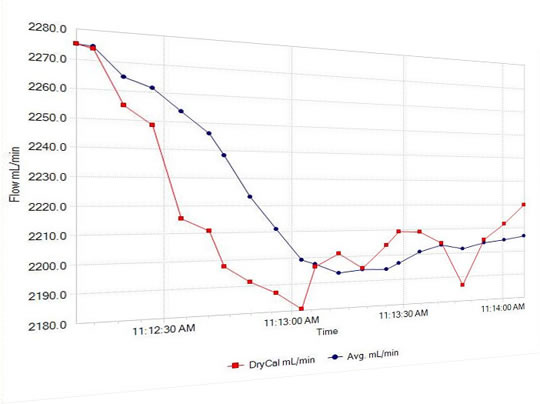

MesaLab's' Bios Defender 510, 520, 530 primary flow calibrators with DryCal Technology MesaLabs DryCal Pro Software Logo               MesaLabs DryCal® Pro Software

MesaLabs Bios DryCal Pro Software for Defender 510, 520, 530 and Definer 220 Primary Flow Calibrators

Click for larger picture

The Defender 510, 520 and Defender 530+ calibrators can use the DryCal Pro software for bullet-proof transfer of volumetric and standardized flow data and have automatic recording and graphing of flow measurements.

These records can also be easily opened in a variety of off-the-shelf database applications, including Microsoft Excel or Access.
Kit Options
  Proven DryCal Technology

       Bios Defender 510, 520 & 530+
        Calibrator Kit Options & Pricing



MesaLabs Bios Defender 510, 520 & 530+ Calibrators Include: Instrument, 100-240V AC Power Adapter/Charger with US plug configuration,, NIST-Traceable Calibration Certificate, Mini-Manual and instructions for downloading the free DryCal Pro Software. The 510 & 520 calibrators have standard barb fittings with (2) Plastic Leak Test Caps and a serial cable. The 530+ calibrators have Swagelok® fittings (models L and M, 1/4" and model H only 3/8") and are shipped with a barb adapter for use with soft tubing if needed and (1) Plastic Leak Test Cap and a USB cable.

* Calibrators come standard with US chargers
Adapter plugs available for use in Australia, UK or Europe
For each additional plug add $5.75

Brandt instruments, Inc. are the distributor for MesaLabs calibrators only in the US.
Please contact us for special web pricing.

Overseas customers please contact your local distributor for pricing which includes international shipping charges, import duties and local taxes.

Part Number

Description

Flow Range*

Price
510

200-510-L Defender 510-Low Flow 5 to 500 mL/mil
$1,450.00
200-510-M Defender 510-Medium Flow 50 ml/min to 5 LPM
$1,450.00
200-510-H Defender 510-High Flow 300 ml/min to 30 LPM
$1,450.00
520

200-520-L Defender 520-Low Flow 5 to 500 mL/min
$1,660.00
200-520-M Defender 520-Medium Flow 50 ml/min to 5 LPM
$1,660.00
200-520-H Defender 520-High Flow 300 ml/min to 30 LPM
$1,660.00

200-530+L Defender 530+ Low Flow 5 to 500 mL/min
$2,299.00
200-530+M Defender 530+ Medium Flow 50 ml/min to 5 LPM
$2,299.00
200-530+H Defender 530+ High Flow 300 ml/min to 30 LPM
$2,299.00

* Defender 510 = ±1% of reading volumetric.
* Defender 520 = ±1% of reading volumetric, includes temperature & pressure recording
* Defender 530+ =.±0.75% of reading volumetric, ±1% of reading standardized for  temperature & pressure.

--------------------------------------------------------------------------------------

Trade-In Program Extended

$200 DryCal Calibrator Trade-In Program

MesaLab Bios DryCal or Competive Calibrators*

For each DC-1, DC-2, DryCal DC-Lite or competitive calibrator,
receive $200 off of the prices above. Expires March 30, 2020.

Easy 1-2-3 Procedure:

1. Provide us with the serial number & model of your trade-in calibrator. We will provide you with a quote including the trade-in discount.
2. Place an order for the new Bios Defender calibrator.
3. We will provide you with an RMA to return the trade-in to MesaLabs and promptly return the trade-in calibrator to MesaLabs within 2 weeks of receiving your new Defender. Customer is responsible for all shipping charges associated with the returned unit.

* Note: One for one trade-in policy on new units.

Trade-In Details Brochure

------------------------------------------------------------------------------

Note: MesaLabs require that we post only list pricing
Please call or e-mail us at the numbers below for our web pricing

Accessories

Proven DryCal Technology

MesaLabs Bios Defender 510 & 520 Accessories
Software, Hardware & Cases

Part #
Accessory
Accessory Description

Pricing
US

100-222

100-222 Bios Universal  Adapter/Charger
Adapter/Charger Universal

Universal 100-240V, 12 VDC with USA plug configuration. For UK, Europe or Australia add adapter plug below.
64.00
100-215
Adapter/Charger Plug
For use with universal adapter, additional plug configurations for UK, Europe or Australia, please specify which adapter.
10.00
100-413
100-413 Bios Plastic Leak Test Cap - Yellow
Leak Test Cap


Plastic, yellow, for suction and pressure fittings
during self leak test (package of 10)
12.00
100-420
100-420 Bios Plain Tubing by the Foot
Tubing by the Foot
Tygon, laboratory grade, 1/4" ID, 3/8" OD; flexible; kink, pinch, chemical and heat resistant. Please specify length.
$8.00
per foot

300-002 Optimizer Collect Upgrade
DryCal® Pro Software

DryCal® Pro Software is available at no charge from the download site at:

http://drycal.mesalabs.com/drycal-pro-software/

No Charge
100-112
100-113 PC Serial Port Card
PC Card
Provides a serial port for laptop computers
289.00
100-113

Bios RS-232 Serial Cable for Defender to PC Connection
Serial Cable

RS-232 cable for Defender to PC connection
26.00
100-250
100-250 Pelican 1200 Case for Bios  Defender Calibrator
Pelican 1200
Hard, heavy duty case with custom foam; fits 1 Defender
115.00
100-251
100-251 Pelican 1520 se for 2-3  Bios  Defender Calibrato
Pelican 1520
Hard, heavy duty case with custom foam; fits 2-3 Defenders
299.00

Pricing effective January 01, 2019. Subject to change without notice.

    Download pdf Purchase Order Form
       Download Word Purchase Order Form

Terms for Instrument and Accessory Returns:
NOTE: Any returns will incur a 30% restocking fee on the list price of the item. To return any instruments or accessories you must request a Return Authorization number prior to returning anything to the factory for credit. This Return Authorization number must be prominently displayed on the outside of the shipping box. All products returned to MesaLabs must be sent freight pre-paid, in new condition and in the original cartons with all unopened software, accessories and manuals. The sender is responsible for any carrier loss or damage.
