FlexCal

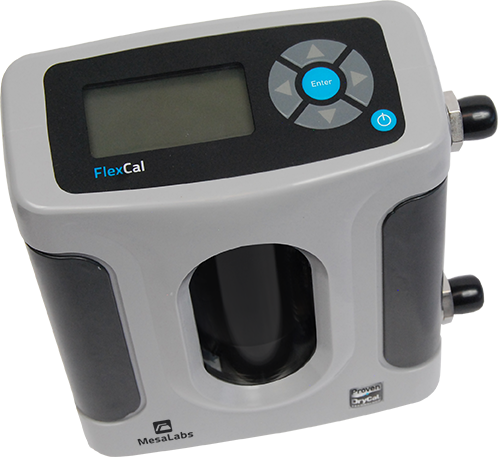

Click link to view instrument close-up
The
MesaLabs
Bios DryCal FlexCal
series calibrator is a precision primary flow calibrator comprised
of three models with flow ranges from 5 ccm to 50 LPM, capable of
volumetric and standardized flow measurement accuracy of 0.5% of
the reading. An economical option for small analytical laboratories,
research & development organizations, manufacturing and calibration
labs that may not need the 0.15% accuracies of the MetLab 800 series
calibrators. Perfect, for instance, for use in calibrating industrial
mass flow meters.
- USB connectivity
- Flow ranges
from 5 ccm to 50 LPM
- Quick start
operation
- Graphical
LCD display
- User-selectable
flow units and time intervals
The FlexCal
is small, easy to carry and ready for even the most demanding of
applications. When using the Mesa Labs FlexCal, you are guaranteed
high accuracy with high confidence without the use of soap bubbles,
timers, or heavy mercury provers. Quick start
operation Graphical LCD display user-selectable flow units and time
intervals.
A versatile,
push-button flow meter, the FlexCal is a primary flow standard which
enables the user to accurately calibrate a variety of instruments
while maintaining an ISO 17025-traceable audit trail.
|
MesaLabs
DryCal FlexCal Overview
Accuracy
- Standardized or
Volumetric Flow: 0.5%
- MesaLabs
is a fully accredited ISO-17025 facility with a 0.08% Scope of Accreditation
for gas flow by NVLAP of NIST.
- Integrated temperature
sensors and pressure transducers placed directly in the flow stream
for optimum standardized results recording
Flexibility
- Choose between
volumetric or standardized flow units – (mL/min, L/min, cc/min, cf/min)
- Include
up to one hundred readings in a group average
- Take individual
readings, continuous hands-free readings, or set to read in time intervals
anywhere from one minute to sixty minutes between readings
Software:
- The DryCal®
Pro software is available for the FlexCal with an integrated USB
PC interface for easy transfer of flow data to a text file, with automatic
recording and graphing of flow measurements. These
records can also be easily opened in a variety of off-the-shelf database
applications, including Microsoft Excel or Access.
Specifications
 |
FlexCal Specifications
|
|
| Size |
5.5"H x 6"W x 3"D
140 mm x 150 mm x 75 mm |
| Weight
|
29 oz. / 820 g |
| Flow
Ranges |
|
| FlexCal-L
Low
Flow |
5 to 500 ccm |
| FlexCal-M
Medium
Flow |
50 ccm - 5 LPM |
| FlexCal-H
HighFlow |
0.5 - 50 LPM |
| Accuracy |
At gas pressure of 760 mmHg, gas
temperature of 25°C with standard temperature set to 0°C. |
|
Standardized
Volumetric
|
0.5% of reading
0.5% of reading |
| User-Selectable
Measurement Units |
| Volumetric
Flow |
mL/min, L/min, cc/min, cf/min |
| Standard
Flow |
smL/min, sL/min, scc/min, scf/min |
| Pressure |
mmHg, PSI, kPa |
| Temperature |
ºC, ºF |
| Approximate
Time per Reading |
1-15 seconds |
| Gas
Compatibility |
Use with non-corrosive, non-condensing,
non-combustible gases, less than 70% humidity |
| Flow
Modes |
Suction or Pressure |
| Measurement
Cell Style |
Integrated |
| Temperature
& Pressure Sensors |
In the flow stream
Press: 3.5 mmHg (typical), 7.0 mm (max)
Temp: 0.8 °C (typical) 1.3 °C (max) |
| Reading
Styles |
Single (manual), Continuous or
Burst, with averaging function user-selectable from 1 to 100 measurements
|
| AC
Adapter/Charger |
12 DC, >250 ma, 2.5 mm, center
positive |
| Battery
System |
6V rechargeable, sealed lead-acid,
6-8 hours typical operation |
| Battery
Operational Time |
3 hours backlight on, 8 hours backlight
off |
| Pressure
& Suction Fittings |
1/4" Swagelok® compression
fittings on Low & Medium Flow Models, 3/8" on High Flow Model
|
| Warranty |
Instrument: 1 year, Battery: 6
months |
| Storage
Temperature |
0-70 °C |
| Ambient
Humidity |
0-70% -
non-condensing |
| Operating
Pressure |
(Absolute) 15 PSIA Max |
| Display |
Backlit graphical LCD |
Data
Port
|
USB (for use with DryCal Pro software)
|
| Data
Cable |
1 meter (FlexCal Data Port to PC
USB port) |
| Protective
Case |
Pelican case available |
| Laboratory
Accreditation |
Instruments are manufactured and
calibrated by MesaLabs accredited to the ISO 17025, ANSI Z540, and
NIST Handbook 150 standards. Traceability to the International System
of Units (SI) and NIST is verified by accreditation to the ISO/IEC
17025. |
| Instrument
Certification |
RoHS and CE Compliant |
MesaLabs_Bios_FlexCal_Calibrator_Brochure
MesaLabs_Bios_FlexCal_Calibrator_Manual
Kit
Options
|
|
MesaLabs
FlexCal Series Calibrator Kit Options & Pricing
|
|
The FlexCal Includes: Instrument, 100-240V AC Power Adapter/Charger,
USB Cable, (1) Plastic Leak Test Cap, NIST-Traceable Calibration Certificate,
Manual, Swagelok® fittings (models L&M, ¼"; model
H only, 3/8"). Optional Pelican cases are available.
*
Calibrators come standard with 100-240V AC Power Charger
with US,
UK, Europe and Australian
plug adapters.
Brandt
instruments, Inc. are the distributor for MesaLabs calibrators
only in the US
Overseas
customers please contact your local distributor for pricing which
includes international shipping charges, import duties and local
taxes.
|
|
Part
Number
|
Description
|
Flow Range
|
Current
US $ Pricing |
Effective
April 1, 2024 |
| |
|
|
| FlexCal-L
|
FlexCal Low Flow |
5 to 500 ccm |
$7,292.00
|
$7,657.00
|
| FlexCal-M
|
FlexCal Medium Flow |
50 ccm to 5 LPM |
$7,292.00
|
$7,657.00
|
| FlexCal-H
|
FlexCal High Flow |
0.5
to 50 LPM |
$7,292.00
|
$7,657.00
|
Download
pdf Purchase Order Form
Download Word
Purchase Order Form
Brandt
Instruments Web Privacy Statement
|
Accessories
|
|
MesaLabs FlexCal
Accessories, Software, Hardware & Case
|
|
Part
#
|
Accessory
|
Description
|
Pricing
in US$
|
| 100-222
|
Adapter/Charger Universal |
Universal
100-240V, 12 VDC; single charger for use in multiple countries. Comes
with one plug configuration of your choice: U.S., U.K., European or
Australian plug configuration. For additional plugs, see part 100-215. |
$78.00
|
| 100-406 |
Leak
Test Plug |
Leak
test plug to fit 1/4" Swagelok fitting, models L and M |
$28.00
|
| 100-407 |
Leak Test Plug |
Leak
test plug to fit 3/8" Swagelok fitting, FlexCal model H |
$29.00
|
| 100-411 |
Fitting,
Barbed
|
3/8"
Swagelok barbed fitting, FlexCal H |
$123.00
|
| 100-429 |
Ferrule |
3/8'
Swagelok ferrule, FlexCal H |
$17.00
|
| 100-432 |
Swagelok®
Reducer |
3/8"
Swagelok to 1/4' Swagelok reducer, FlexCal H |
$55.00
|
| 100-445 |
Ferrule
& Nut |
Swagelok
Nut and Ferrule set 3/8" for FlexCal H |
$29.00
|
| 100-420
|
Tubing by the Foot |
Tygon,
laboratory grade, 1/4" ID, 3/8" OD; flexible; kink, pinch,
chemical and heat resistant. Flexible tubing for use with barb fitting.
Please specify length. |
$10.00
per foot
|
|
DryCal®
Pro Software
|
DryCal®
Pro Software is available at no charge from the download site at:
http://drycal.mesalabs.com/drycal-pro-software/
|
No
Charge
|
| 100-451
|
Pelican Case
|
Pelican
heavy duty case with custom foam; fits 1 FlexCal calibrator and accessories |
$265.00
|
|
US
Pricing
effective May 1, 2023.
Subject to change without notice.
New
pricing will go into effect on any orders placed on or after April
1, 2024
Download
pdf Purchase Order Form
Download Word
Purchase Order Form
|
Terms
for Instrument and Accessory Returns:
|
| NOTE:
Any
products returns must be done within 15 days of the date of
shipment. Credit will only be issued for returns valued at over
$350 per sales order, and will incur the MesaLabs 30% restocking
fee on the list price of the items purchased. To return any
instruments you must request a Return Authorization number prior
to returning anything to the factory for credit. This Return
Authorization number must be prominently displayed on the outside
of the shipping box. All products returned to MesaLabs must
be sent freight pre-paid in the original cartons. Product must
be returned in original "sellable" condition (i.e. product has
not been turned on, activated or used, has not expired, product
packaging remains unmarked and includes all original accessories,
spares, documentation and promotional items). Final determination
regarding the acceptability of the returns will be made by MesaLabs
upon receipt. The sender is responsible for any carrier loss
or damage. |

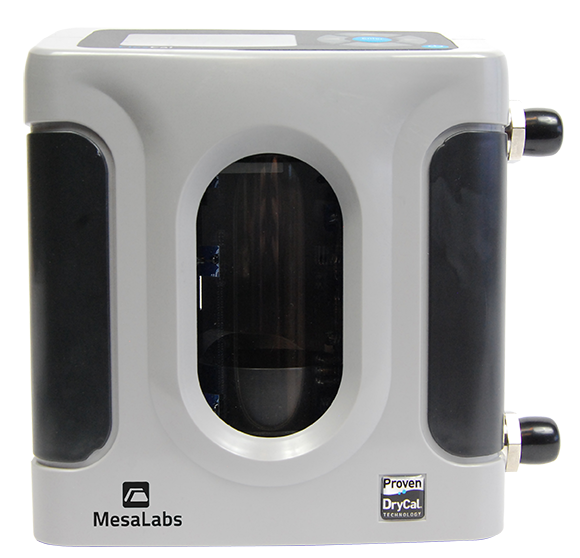

Front
View
|

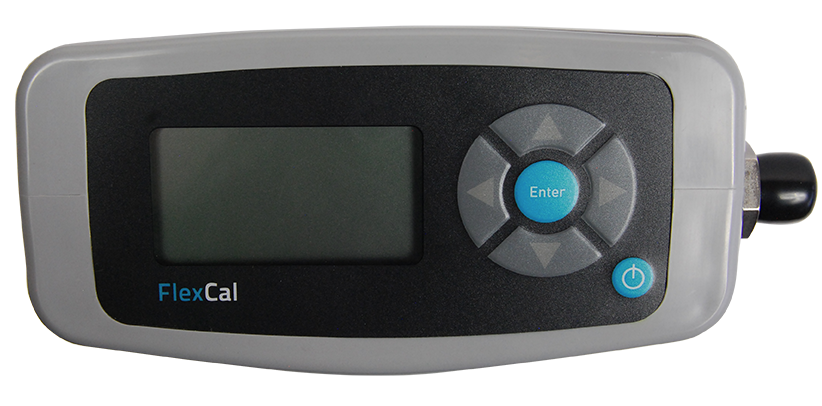

Top
