Bios Definer 220 Primary Flow Calibrator
Using DryCal® Technology


MesaLabs DryCal Definer 220 Primary Flow Calibrator
with
Automatic Temperature & Pressure Compensation
Air Flow Calibrators with DryCal® Technology


  Home MesaLabs
MesaLabs DryCal Definer 220 Primary Flow Calibrator


Order Form

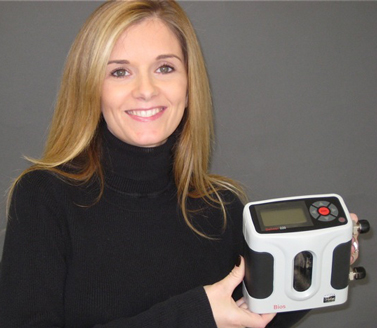

MesaLabs Bios Definer 220 Precision Calibrator Presentation

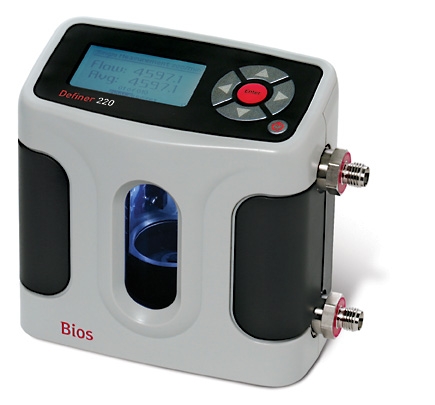

Definer 220 - Click link to view instrument close-up






The
DryCal Definer 220 calibrator with flow rates from 5 cc to 30 Liters, is a true primary flow standard which allows users to verify gas flow rates, in the field or in the lab, to an accuracy of 1% percent for readings standardized for temperature and pressure and 0.75% in volumetric flow.

Unlike thermal mass flow meters, the Definer 220's positive displacement technology provides immediate indication of actual volumetric gas flow rate accurately and independently of gas type.  Integrated temperature and pressure sensors in the flow stream allow users to automatically standardize volumetric flow readings to standard conditions, for traceable verifications of mass flow devices.

A versatile, push-button flow meter, the Definer 220 is a primary flow standard which enables the user to accurately calibrate a variety of instruments while maintaining an ISO 17025-traceable audit trail.


MesaLabs' Bios DryCal Definer 220 - Overview

Accuracy

  • Standardized: ±1.0%, Volumetric ±0.75%
  • Proven percent of reading accuracy is supported by ISO 17025 accreditation by NVLAP of NIST
  • Integrated temperature sensors and pressure transducers placed directly in the flow stream for optimum standardized results recording
Flexibility
  •  Choose between volumetric or standardized flow units – (mL/min, L/min, cc/min, cf/min)
  •  Include up to one hundred readings in a group average
  •  Take individual readings, continuous hands-free readings, or set to read in time intervals anywhere
     from one minute to sixty minutes between readings

Software:

  • The DryCal® Pro software is available for the Definer with an integrated serial PC interface for easy transfer of flow data to a text file, with automatic recording and graphing of flow measurements. These records can also be easily opened in a variety of off-the-shelf database applications, including Microsoft Excel or Access.
Specifications






MesaLabs Bios Definer 220 used on Met-One Station

Definer 220 used on
Met One Station


Proven DryCal Technology Defender 510/520 Specifications


Definer 220 Specifications

Bios NVLAP Certification Logo

Size 5.5"H x 6"W x 3"D
140 mm x 150 mm x 75 mm
Weight 29 oz. / 820 g
Flow Ranges
Definer 220 (L) Low Flow 5 to 500 scc/min
Definer 220 (M) MediumFlow 50 - 5,000 scc/min
Definer 220 (H) HighFlow 300 - 30,000 sccl/min
Accuracy At gas pressure of 760 mmHg, gas temperature of 25°C with standard temperature set to 0°C.

Standardized
Volumetric

±1.0%
±0.75%
User-Selectable Measurement Units
Volumetric Flow mL/min, L/min, cc/min, cf/min
Standard Flow smL/min, sL/min, scc/min, scf/min
Pressure mmHg, PSI, kPa
Temperature ºC, ºF
Approximate Time per Reading 1-15 seconds
Gas Compatibility Use with non-corrosive, non-condensing, non-combustible gases, less than 70% humidity
Flow Modes Suction or Pressure
Measurement Cell Style Integrated
Temperature & Pressure Sensors In the flow stream
Press: 3.5 mmHg (typical), 7.0 mm (max)
Temp: 0.8 °C (typical) 1.3 °C (max)
Reading Styles Single (manual), Continuous or Burst, with averaging function user-selectable from 1 to 100 measurements
AC Adapter/Charger 12 DC, >250 ma, 2.5 mm, center positive
Battery System 6V rechargeable, sealed lead-acid, 6-8 hours typical operation
Battery Operational Time  3 hours backlight on, 8 hours backlight off
Pressure & Suction Fittings ¼” ID Swagelok® compression fittings,
3/8" on High Model
Warranty Instrument: 1 year, Battery: 6 months
Storage Temperature 0-70 °C
Ambient Humidity 0-70% - non-condensing
Operating Pressure  (Absolute) 15 PSI
Display Backlit graphical LCD
Data Port
Serial RS-232 (for use with Optimizer software)
Data Cable 1 meter (Defender Data Port to PC Serial Port)
Protective Case Soft side or Pelican case available
Laboratory Accreditation Instruments are manufactured and calibrated by a company accredited to the ISO 17025, ANSI Z540, and NIST Handbook 150 standards. Traceability to the International System of Units (SI) and NIST is verified by accreditation to the ISO/IEC 17025 by NVLAP under Code 200661-0.
Instrument Certification RoHS and CE Compliant

Adobe Acrobat pdf format - Bios Gas  Flow Bench Bios_Definer 220 Met Lab Calibrator_Brochure


Kit Options
  Proven DryCal Technology

       Definer 220 Series Calibrator Kit Options & Pricing




Bios Definer 220 Includes: Instrument, 100-240V AC Power Adapter/Charger, Serial Cable, Plastic Leak Test Cap (1), NIST-Traceable Calibration Certificate, Mini-Manual, and Swagelok® fittings (models L&M, ¼"; model H only, 3/8") and instructions for downloading the free DryCal® Pro Software.

* Calibrators come standard with US chargers
Adapter plugs available for use in Australia, UK or Europe
For each additional plug add $5.25

Part Number

Description

Flow Range

Pricing $US


200-220L Definer 220 Low Flow 5 to 500 smL/min
2,135.00
200-220M Definer 220 Medium Flow 50 to 5000 sml/min
2,135.00
200-220H Definer 220 High Flow 300 to 30,000 sml/min
2,135.00

Pricing effective January 1, 2014. Subject to change without notice

Purchase Order Form     Download pdf Purchase Order Form
   Purchase Order Form    Download Word Purchase Order Form

              Brandt Instruments Web Privacy Statement


New
2014 Service Package - Only Sold with New Units

 3-year factory calibration program offers Premium customers a 25% discount off annual pricing
 Full product warranty for 4 years from date of purchase
 Calibration reminders at 45 days and 15 days prior to calibration date

Defender & Definer Service Package Pricing:

400-700 Defender 510 Three year advanced Premium Service Package $438.00
400-701 Defender 520 Three year advanced Premium Service Package $618.00
400-702 Defender 530 Three year advanced Premium Service Package $708.00
400-703 Definer 220 Three year advanced Premium Service Package $708.00


   Download Service Package Literature with Details





Accessories

Proven DryCal Technology

Definer Accessories, Software, Hardware & Cases


Part # Accessory Definer Accessories
Pricing $US
100-222
100-222 Bios Universal  Adapter/Charger
Adapter/Charger Universal
Universal 100-240V, 12 VDC with USA plug configuration. For UK, Europe or Australia add adapter plug below.
37.75
100-215 Adapter/Charger Plug For use with universal adapter, additional plug configurations for UK, Europe or Australia, please specify
5.25
100-420
100-420 Bios Plain Tubing by the Foot
Tubing by the Foot
PVC, plain, ¼“ ID, 3/8" OD; please specify length up to 25 feet
$1.05 per foot
Software/Hardware

300-002 DryCal Pro Software
DryCal® Pro Software

DryCal® Pro Software is available at no charge from the download site at:

http://drycal.mesalabs.com/drycal-pro-software/

No Charge
100-112
100-113 PC Serial Port Card
PC Card
Provides a serial port for laptop computers
225.00
100-113

Bios RS-232 Serial Cable for Defender to PC ConnectionSerial Cable

RS-232 cable for Definer to PC connection
10.50
Cases
100-250
100-250 Pelican 1200 Case for Bios Defender Calibrator
Pelican 1200
Hard, heavy duty case with custom foam; fits 1 Definer and accessories
75.00
100-251
100-251 Pelican 1520 se for 2-3  Bios  Defender Calibrato
Pelican 1520
Hard, heavy duty case with custom foam; fits 2-3 Definers and accessories
210.00
100-259
100-259 Case Logic Shoulder Bag for Bios Defender Calibrator
Case Logic
Shoulder Bag
Soft nylon water-resistant bag for shoulder or hand carry; fits 1 Definer and accessories
45.00


Pricing effective Jan 2014. Subject to change without notice

    Download pdf Purchase Order Form
       Download Word Purchase Order Form



Terms for Instrument and Accessory Returns:
NOTE: Any returns will incur a 25% restocking fee on the list price of the item. To return any instruments or accessories you must request a Return Authorization number prior to returning anything to the factory for credit. This Return Authorization number must be prominently displayed on the outside of the shipping box. All products returned to MesaLabs must be sent freight pre-paid, in new condition and in the original cartons with all unopened software, accessories and manuals. The sender is responsible for any carrier loss or damage.
