OI-5950 WireFree™ Switch-State Transmitter
Explosion-Proof

The OI-5950 is a WireFree Switch-State Transmitter for use in conjunction with a new or existing WireFree system.  The OI-5950 receives signals from up to two individually addressable sensors (pressure switch, temperature sensor, flow sensor, tank level sensor, etc.), then transmits the state of (and change of state of) that switch.



   Explosion and weather proof enclosure
   Glass lid for viewing the display
   Non-intrusive setup with MENU, ADD and SUB buttons
          ensures FASTER, CHEAPER and EASIER installation
   Ability to use with a variety of sensor types
   Allows for use of multiple receivers in multiple locations
   Use any Otis WireFree receiver to complete the wireless application

   Radio Options:
              Gen II radio 900 MHz, 200mW

                    (2.4 GHz ISM, 100mW available for international use)



OI-5950 WireFree Switch-State Transmitter
Explosion-Proof

Technical Specifications

Enclosure Otis-Blue explosion/flame proof
Size 6 " x 4.5" x 6"
Display Graphical LCD, sunlight readable (transflective), LED back-light, 102x64 pixel resolution
Unit Address

1-52 Networks (1-78 for 2.4 GHz)
1-255 addresses per network

Operating Temperature -30° F to 70° C
Radio Transmission Every 1 minute with no change from sensor
Every 5 seconds with change from sensor
Certifications Explosion-proof; CSA Class I, Division 1 Groups C and D
Battery Type 19 AH
Battery Voltage 3.6 VDC
Battery Life Expectancy Up to 2 years
Radio Options 2.4 GHz ISM, 100mW OR 900 MHz, 200mW
Warranty

Device = one year (limited); Battery = 90 days

Otis WireFree Logo

Otis OI-5950 Brochure

   OI-5950 Manual

For additional accessories & options: Accessories

CSA Certification Icon
ATEX Certification Icon

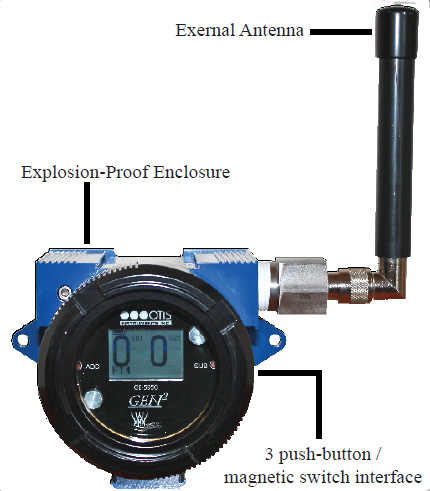

Otis Instruments OI-5950 WireFree Switch-State Transmitter

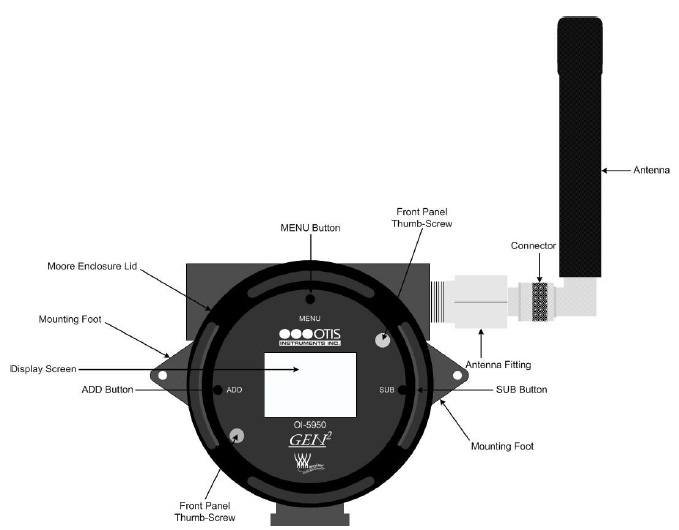

OI-5950 WireFree Switch-State Transmitter Diagram
