Gasco Calibration & Bump Gas Cylinders
Sizes, Photos & Specifications


                                                               home Gasco Gasco Calibration & Bump Gas Cylinder Sizes, Photos & Specifications

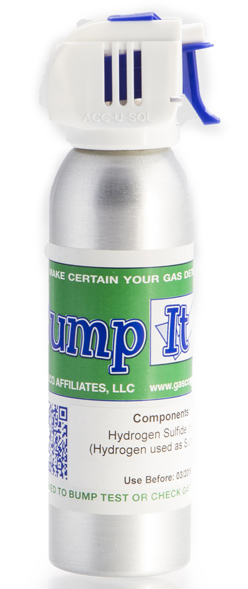

"BumpIT" Disposable 6"
     Mini-Gas Cylinders

•   1 liter capacity
•   10-15 second bumps per cylinder
•   Non-hazardous cost effective shipping
•   All gas mixtures except for corrosive gases

Note: Designed for bump testing sensors. Does not have the capacity for full calibration.

Shelf life for multi-mix calibration
gases with H2S is 3 months.




Gasco 10 Liter Aluminum Alloy Cylinder with Aerosol Trigger


10 Liter Trigger Cylinders
Part Number: 10L
Pressure: 160 PSI
Contents: 0.35 CU FT
Dimensions: 9.4" x 2.9"
Water Capacity: 0.97 Liter
Material: Aluminum Alloy
Weight: 5 Oz
Gas Type: Most Reactive & All Non-Reactive

Regulator: Shaving Cream or Trigger Aerosol

Shelf life for multi-mix calibration
gases with H2S is 6 months.

Gsco 17 Liter Steel Cylinder

17 Liter Steel Cylinders

Part Number: 17L
Pressure: 240PSI
Contents: 0.6 CU FT
Dimensions: 10.75" x 2.9"
Water Capacity: 1.0Liter
Material: Steel
Weight: 1 Lb
Gas Type: Non-Reactive
Regulator: 71-Series, 72-MFV/17 or CV-2

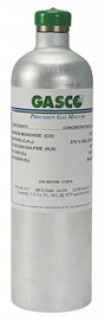

Gasco 34 Liter Aluminum Cylinder
34 Liter Aluminum Cylinders
Part Number: 34L
Pressure: 500 PSI
Contents: 1.2 CU FT
Dimensions: 10.64" x 3.125"
Water Capacity: 0.9 Liter
Weight: 1 Lb 14.9 Oz
Material: Aluminum Alloy
Gas Type: Reactive / Non-reactive
Valve Inlet: 5/8" UNF (C-10)
Regulators: 70-Series, 70-SS Series, 73-PBR, 74-DAF, 75-Demand Flow

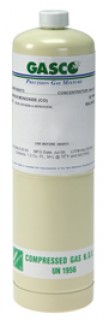

Gasco 34 Liter Steel Cylinders
34 Liter Steel Cylinders
Part Number: 34LS
Pressure: 500 PSI
Contents: 1.2 CU FT
Dimensions: 10.75" x 2.9"
Water Capacity: 0.9 Liter
Material: Steel
Weight: 1.8 lbs
Gas Type: Non-Reactive
Valve Inlet: CGA 600
Regulator: 71-Series, 72-MFV/17, CV-2

Gasco 44 Liter ecosmart Refillable Cylinder
44 Liter ecosmart Refillable Cylinders
Part Number: 44ES
(Standard non-refillable: 44L)
Pressure: 825 PSI
Contents: 1.5 CU FT
"Dimensions: 9.8" x 2.9"
Water Capacity: 0.79 Liter
Material: Aluminum Alloy
Weight: 1.7 Lbs
Gas Type: Reactive / Non-reactive
Valve Inlet: 5/8"-18 UNF (C-10)
Regulators: 70-Series, 70-SS Series, 73-PBR, 74-DAF, 75-Demand Flow

Same size as a standard 34 liter cylinder, but with 10 more liters of gas.
Gasco 58 Liter Aluminum Gas Cylinders
58 Liter Aluminum Cylinders
Part Number: 58L
Pressure: 500 PSI
Contents: 2.0 CU FT
Dimensions: 14.25" x 3.53"
Water Capacity: 1.72 Liters
Material: Aluminum Alloy
Weight: 1 Lb 12.0 Oz
Gas Type: Reactive / Non-reactive
Valve Inlet: 5/8"-18 UNF (C-10)
Regulators: 70-Series, 70-SS Series, 73-PBR, 74-DAF, 75-Demand Flow

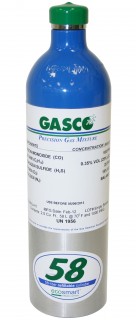

Gasco 58 liter ecosmart refillable cylinders
58 Liter ecosmart Refillable Cylinders
Part Number: 58ES
Pressure: 1000 PSI
Contents: 2.05 CU FT
Dimensions: 9.8 " x 2.9"
Water Capacity: 0.72 Liters
Material: Aluminum Alloy
Weight: 1.7 lbs
Gas Type: Reactive / Non-reactive
Valve Inlet: 5/8"-18 UNF (C-10)
Regulators: 70-Series, 70-SS Series, 73-PBR, 74-DAF, 75-Demand Flow

Gasco 66 Liter ecosmart Refillable Cylinders
66 Liter ecosmart Refillable Cylinders
Part Number: 66ES
(Standard non-refillable: 66L)
Pressure: 1200 PSI
Contents: 2.33 Cubic Feet
Dimensions: 9.8 " x 2.9"
Water Capacity: 0.79 Liters
Material: Aluminum Alloy
Weight: 1.7 Lbs
Gas Type: Reactive / Non-reactive
Valve Inlet: 5/8"-18 UNF (C-10)
Regulators: 70-Series, 70-SS Series, 73-PBR, 74-DAF, 75-Demand Flow
Same physical size as a standard 34L cylinder with 10% more gas than a standard 58-liter cylinder.
Gasco 103 Liter Steel Cylinder
103 Liter Steel Cylinders
Part Number: 103L
Pressure: 1000 PSI
Contents: 3.6 CU FT
Dimensions: 13.6" x 3.3"
Water Capacity: 1.52 Liters
Material: Steel
Weight: 48.0 Oz, (3 Lbs)
Gas Type: Non-Reactive gas only
Valve Inlet: 5/8"-18 UNF (C-10)
Regulators: 70-Series, 70-SS Series, 73-PBR, 74-DAF, 75-Demand Flow

Gasco 105 Liter Aluminum Cylinder for Non-Reactive Gases 105 Liter Aluminum Cylinders for Non-reactive Gases
Part Number: 105L
Pressure: 1200 PSI
Contents: 3.708 CU FT
Gas Type: Non-reactive gas only
Dimensions: 12.8" x 3.2"
Water Capacity: 1.7 Liters
Material: Aluminum Alloy
Weight: 1.6 lbs
Valve Inlet: 5/8"-18 UNF (C-10)
Regulator: 70-Series, DAF, 70-SS Series, &  73-PBR, 75-Demand Flow

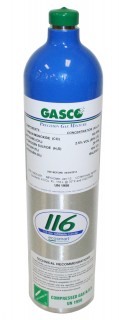

Gasco 116 Liter ecosmart Refillable Cylinders 116 Liter ecosmart Refillable Cylinders
Part Number: 116ES
Pressure: 1000 PSI
Contents: 4.0 CU FT
Gas Type: Reactive / Non-reactive
Dimensions: 14.3" x 3.5"
Water Capacity: 1.7 Liters
Material: Aluminum Alloy
Weight: 1 Lb 12.0 Oz
Valve Inlet: 5/8"-18 UNF (C-10)
Regulator: 70-Series, DAF, 70-SS Series, &  73-PBR, 75-Demand Flow

Same physical size as a standard 58-liter cylinder with twice as much gas.
Gasco 116 liter Aluminum Cylinder 116 Liter Aluminum Cylinders
Part Number: 116L
Pressure: 1000 PSI
Contents: 4.0 CU FT
Dimensions: 14.25" x 3.53"
Water Capacity: 1.72 Liters
Material: Aluminum Alloy
Gas Type: Most reactive/non-reactive
Weight: 2 Lbs 2 Oz
Valve Inlet: 5/8"-18 UNF (C-10)
Regulator: 70-Series, DAF, 70-SS Series, & 73-PBR, 75-Demand Flow

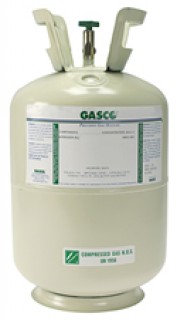

221 Liter Steel Gas Cylinders 221 Liter Cylinders
Part Number: 221L
Pressure: 250 PSI
Contents: 8.0 CU FT
Dimensions: 16.25" x 9.0"
Water Capacity: 12.0 Liters
Material: Steel
Gas Type: Non-Reactive
Weight: 6.3 Lbs
Valve Inlet: CGA 165
Regulator: 70-Series with Adapter
Gasco 552 Liter Cylinder Photo 552 Liter Steell Cylinders
Part Number: 552L
Contents: 19.4 CU FT
Pressure: 2200 PSI
Dimensions: 20.75" x 4.5"
Water Capacity: 3.69 Liters
Material: Steel
Weight: 11 Lbs
Gas Type: Non-Reactive
Valve Inlet: Gas Specific
Regulator: N/A

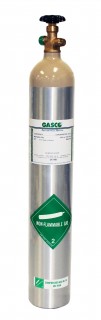

Gasco 600 Liter Aluminum Cylinder 600 Liter Aluminum Cylinders
Part Number: 600L
Contents: 21 CU FT
Pressure: 1000 PSI
Dimensions: 20.75" x 4.5"
Water Capacity: 4.66Liters
Material: Aluminum Alloy
Weight: 8.55 lbs / 3.88 kg
Gas Type: Non-Reactive
Valve Inlet: Gas Specific
Regulator: N/A
Call for Options

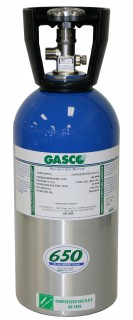

Gasco 650 Liter ecosmart Refillable Cylinders 650 Liter ecosmart Refillable Cylinders
Part Number: 650ES
Contents: 22.8 CU FT
Pressure: 1,650 PSI
Dimensions: 19.25" x 5.25"
Water Capacity: 5.77 Liters
Material: Aluminum Alloy
Weight: 15 lbs with valve
Gas Type: Reactive / Non-reactive
Valve Inlet: CGA 330
Regulator: Demand Flow (Adapter sold separately)



Reactive Gas Shelf Life
Shelf Life
6 Months: NO; NO2; PH3
Shelf Life
8 Months: Cl2; HCL
Shelf Life 12 Months: ETO; H2S; SO2; NH3; HCN; SIH4 & Four Gas Mixtures

Non-Reactive Gases: 5 Years
